Galvanized Crosby Screw Pin Safety Anchor Shackle US Type G210

Brand Name : LKY

Model Number : G210

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Galvanized Screw Pin Chain Shackle U.S Type G210

Material : Carbon steel, Alloy steel, Stainless steel

Surface : Electric galvanized, hot dipped galvanized, self-colored

Size : From 1/4 inch to 2-1/2 inch

Packing : Cartong + Pallet

WLL : 1/2- 55 tons

Contact Now

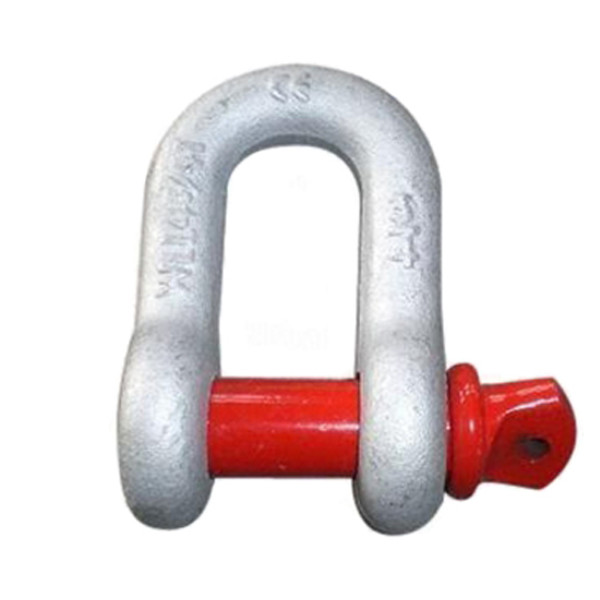

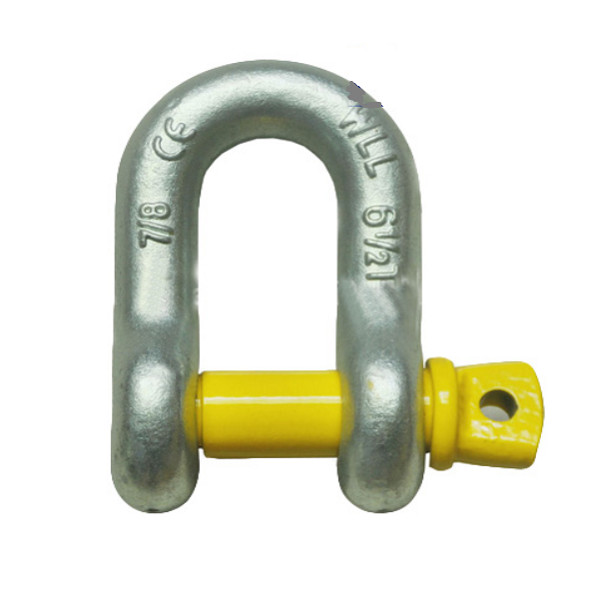

Galvanized Screw Pin Chain Shackle U.S Type G210

Screw pin chain shackles US type G210 are key products in rigging systems. Our company has specialized in producing this product for many years and we also co-operated with other factories with high quality products, so the price is very competitive. We are looking forward to establising business relationship with you.

Details:

1. Model: Screw Pin Chain Shackle US Type G210
2. Material: Stainless steel, Carbon steel, Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized, self- colored
5. Size: From 1/4 inch to 2-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Size	WLL	Pin dia	IL	Weight Each
in	tons	in	in	lbs
1/4	1/2	5/16	7/8	0.11
5/16	3/4	3/8	1-1/32	0.17
3/8	1	7/16	1-1/4	0.24
7/16	1-1/2	1/2	1-7/16	0.40
1/2	2	5/8	1-5/8	0.59
5/8	3-1/4	3/4	2	1.21
3/4	4-3/4	7/8	2-3/8	2.25
7/8	6-1/2	1	2-13/16	3.16
1	8-1/2	1-1/8	3-3/16	4.47
1-1/8	9-1/2	1-1/4	3-9/16	6.75
1-1/4	12	1-3/8	3-15/16	9.06
1-3/8	13-1/2	1-1/2	4-3/8	11.60
1-1/2	17	1-3/4	4-13/16	15.95
1-3/4	25	2	5-3/4	26.75
2	35	2-1/4	6-3/4	42.31
2-1/2	55	2-3/4	8	71.75

Galvanized Crosby Screw Pin Safety Anchor Shackle US Type G210
