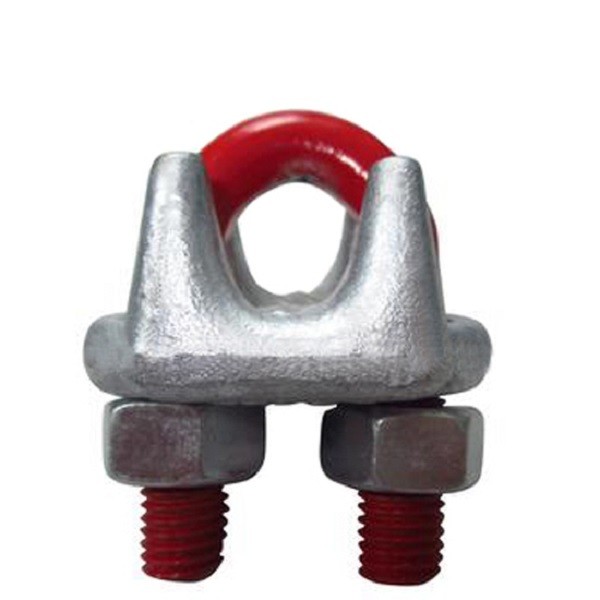

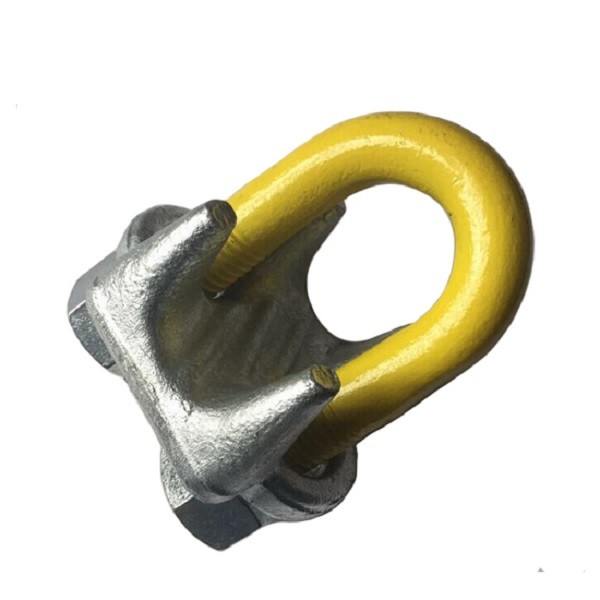

Carbon Steel Electric Galvanized U.S Type Wire Rope Clip
US type wire rope clip is designed and made for rugged, heavy service. Our company can provide you with virous US types of wire rope clips, such as galv malleable wire rope clip, drop forged fist grip wire rope clip, drop forged wire rope clip and so on. All the products have required relative society certification. And our professional sales team will offer you the best sevice. Please feel freee to contact with us.
Details:
1. Standard: US Type
2. Material: Carbon Steel, Stainless Steel
3. Usage: Wire rope clip, marine hardware
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 1/8 inch to 3-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

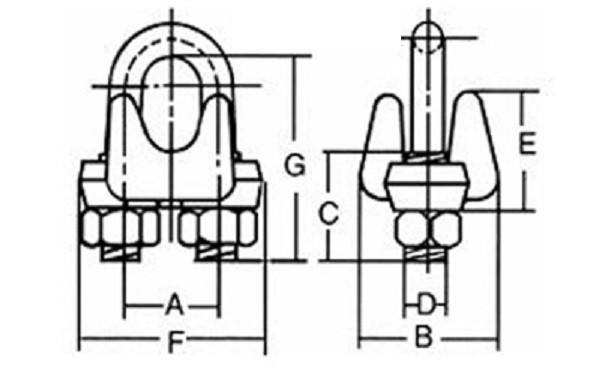

| Size(in) | Dimensions(in) | Weight Each(kg/pc) |
| A | G | F | D | E |
| 1/8 | 0.47 | 0.72 | 0.94 | 0.22 | 0.41 | 0.002 |
| 3/16 | 0.59 | 0.97 | 1.16 | 0.25 | 0.50 | 0.003 |
| 1/4 | 0.75 | 1.03 | 1.44 | 0.31 | 0.66 | 0.003 |
| 5/16 | 0.88 | 1.38 | 1.69 | 0.38 | 0.72 | 0.004 |
| 3/8 | 1.00 | 1.50 | 1.94 | 0.44 | 0.91 | 0.005 |
| 7/16 | 1.19 | 1.88 | 2.28 | 0.50 | 1.03 | 0.005 |
| 1/2 | 1.19 | 1.88 | 2.28 | 0.50 | 1.13 | 0.005 |
| 9/16 | 1.31 | 2.25 | 2.50 | 0.56 | 1.22 | 0.006 |
| 5/8 | 1.31 | 2.38 | 2.50 | 0.56 | 1.34 | 0.006 |
| 3/4 | 1.50 | 2.75 | 2.84 | 0.62 | 1.41 | 0.007 |
| 7/8 | 1.75 | 3.12 | 3.16 | 0.75 | 1.59 | 0.008 |
| 1 | 1.88 | 3.50 | 3.47 | 0.75 | 1.78 | 0.009 |
| 1-1/8 | 2.00 | 3.88 | 3.59 | 0.75 | 1.91 | 0.009 |
| 1-1/4 | 2.31 | 4.25 | 4.13 | 0.88 | 2.19 | 0.011 |
| 1-3/8 | 2.38 | 4.63 | 4.19 | 0.88 | 2.31 | 0.011 |
| 1-1/2 | 2.59 | 4.94 | 4.44 | 0.88 | 2.44 | 0.012 |
| 1-5/8 | 2.75 | 5.31 | 4.75 | 1.00 | 2.66 | 0.013 |
| 1-3/4 | 3.06 | 5.75 | 5.28 | 1.13 | 2.94 | 0.014 |
| 2 | 3.38 | 6.44 | 5.88 | 1.25 | 3.28 | 0.015 |
| 2-1/4 | 3.88 | 7.13 | 6.38 | 1.25 | 3.19 | 0.018 |
| 2-1/2 | 4.13 | 7.69 | 6.63 | 1.25 | 3.69 | 0.019 |
